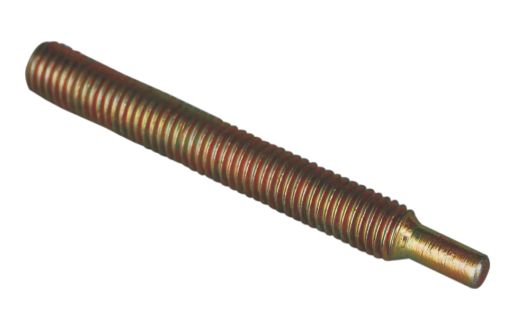

129 SPL. SCREW (M8 X 65MM)
Ref : LSL6 0738 01
Ref : LSL6 0748 01
Qty - 72Pc

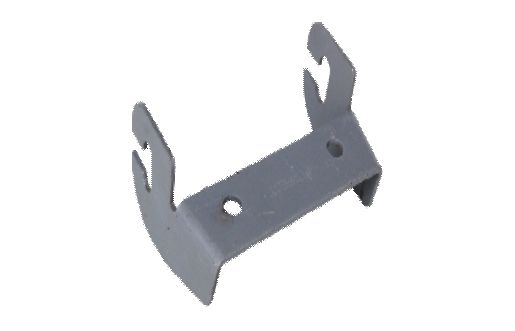

130 SPRING STRETCHER-P
Ref : LSL6 9946 11
Qty - 06Pc

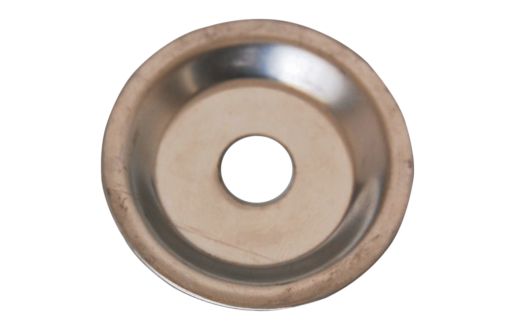

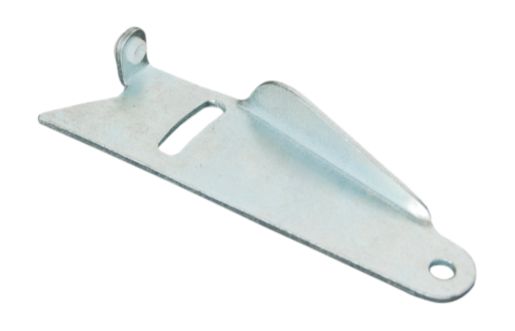

131 COVER - PUSHER ROLLER
Ref : LSL6 0809 05
Qty - 06Pc

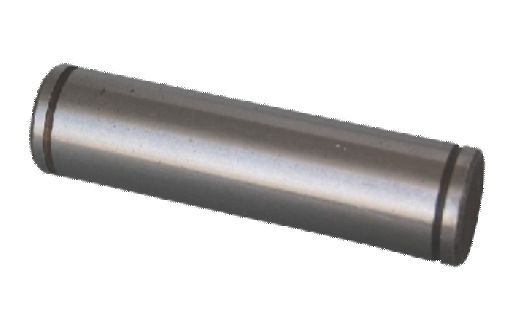

132 PIVOT PIN (12 X 57)
Brg.6001
FOR JOCKEY LEVER
Ref : LSL6 0625 11
Ref : LSL6 0634 11
Qty - 36Pc

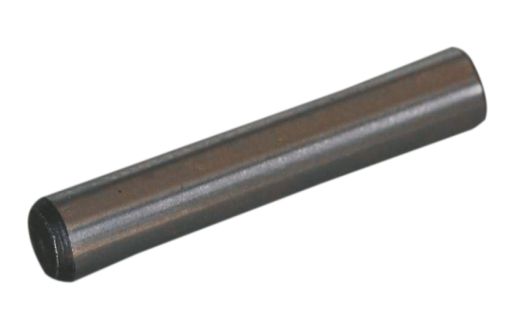

133 CYLINDRICAL PIN (5 X 30) FOR SHUTTLE BODY
Ref : LSL6 5996 20
Ref : LSL6 9906 20
Qty - 06Pc

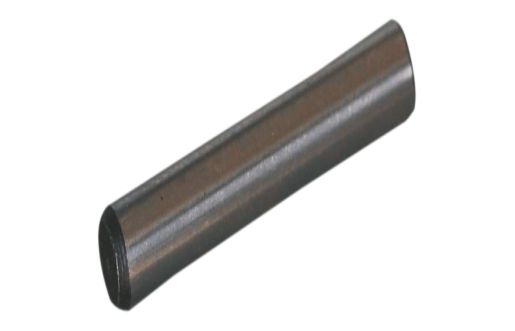

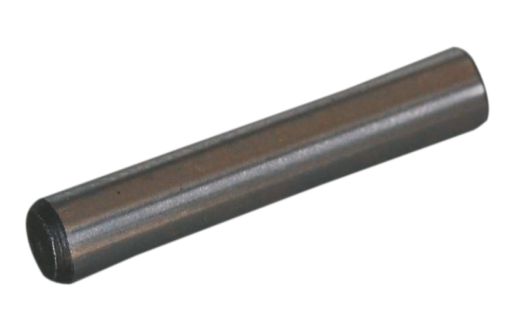

134 DOWEL PIN (6 X 30) FOR CONNECTING ROD
Ref : LSL6 0738 16
Ref : LSL6 0748 16
Ref : LSL6 0761 16
Qty - 36Pc
135 SOLID DOWEL PIN (6 X 10) FOR DRIVE & STOPPER FRAME
Ref : LSL6 0814 06a
Ref : LSL6 0809 10
Ref : LSL6 0802 13
Ref : LSL6 0804 13
Qty - 24Pc

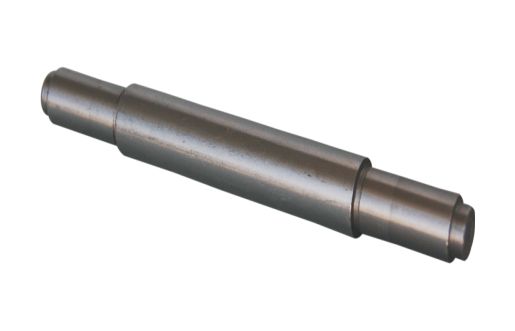

136 AXLE (SMALL)(84 MM) FOR DEF. PULLEY
(Brg.6000)
Ref : LSL6 0738 21
Ref : LSL6 0748 25
Ref : LSL6 0761 25
Qty - 36Pc

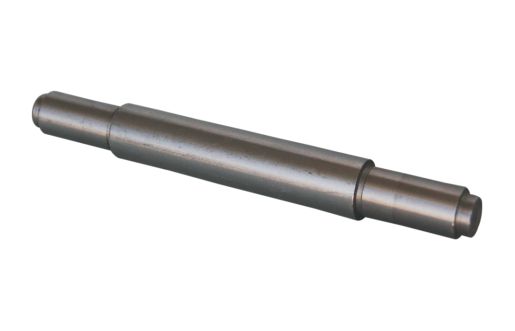

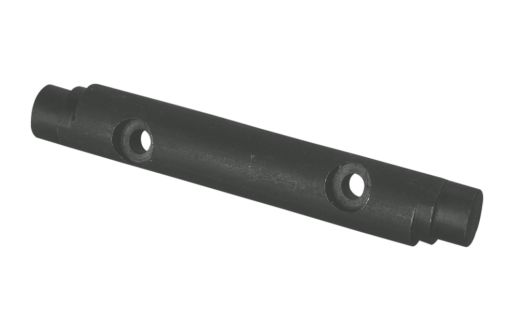

137 AXLE (98 MM) FOR DEF. PULLEY
(Brg.6000)
Ref : LSL6 0738 10
Ref : LSL6 0748 10
Ref : LSL6 0761 10
Qty - 36Pc

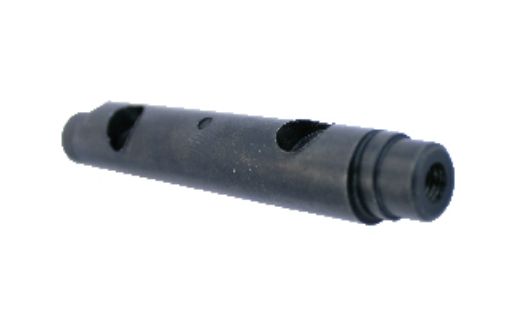

138 ECCENTRIC AXLE-P
(Brg.6001)
Ref : LSL6 5996 11
Ref : LSL6 9906 11
Qty - 12Pc
139 ECCENTRIC AXLE-P (M6)
(Brg.6001)
Ref : LSL6 4925 11
Qty - 12Pc

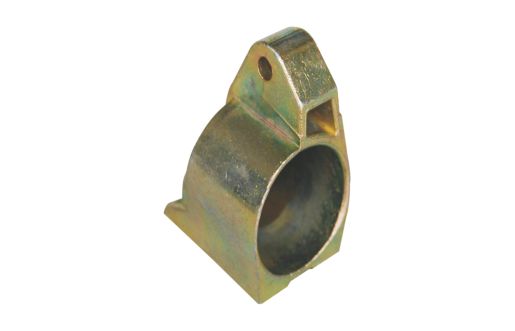

140 UPPER BEARING BLOCK (98MM)
Ref : LSL6 0738 05
Ref : LSL6 0748 05
Ref : LSL6 0761 05
Qty - 36Pc
141 LOWER BEARING BLOCK-S (84MM)
Ref : LSL6 0738 18
Ref : LSL6 0748 18
Ref : LSL6 0761 18
Qty - 36Pc

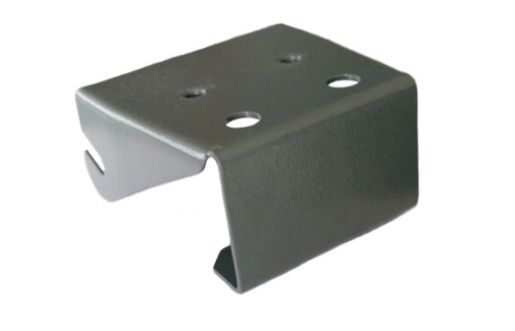

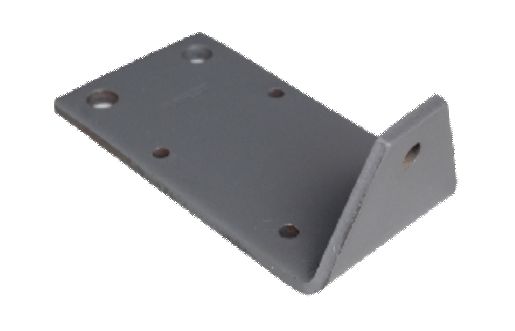

142 DRIVE FRAME
Ref : LSL6 0801 07
Ref : LSL6 0809 07
Qty - 36Pc
143 STOPPER FRAME
Ref : LSL6 814 06
Qty - 36Pc

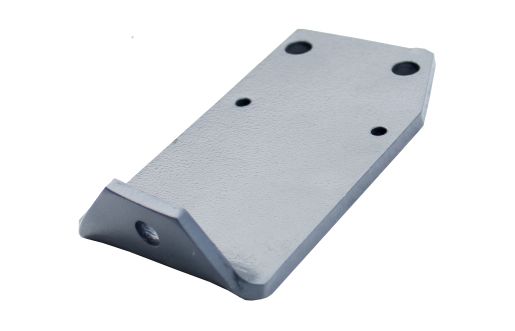

144 BEARING BLOCK-P( FRONT)
Ref : LSL6 5996 12
Ref : LSL6 9906 12
Ref : LSL6 4925 12
Qty - 06Pc
